Underground Chicago: Gas and other Utilities

A series of posts describing Chicago’s underground networks.

Previous: Railroads

Gas mains and pipes:

About 4,500 miles--mainly small diameter.

The system started in the 1840s and is being continually upgraded. People’s Gas was chartered in 1849 by the state and does not pay Chicago a franchise fee. The other utilities either pay a franchise fee or a direct fee for use of the land below and above the public streets.

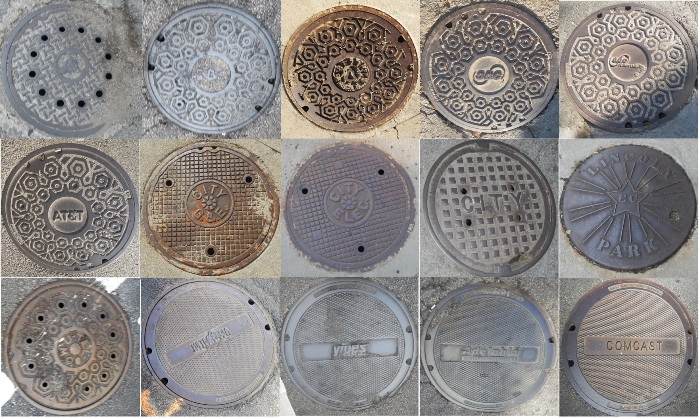

15 different manhole covers

Telephone, telegraph, electric, cable TV, fiber optic lines etc.:

Since the 1880s above ground lines have been banned in the Loop. In the Loop wires are buried or in conduits. In other areas buried lines also are common. Street light , traffic light and high voltage power lines normally are underground in Chicago. Even wireless carriers bury wires.

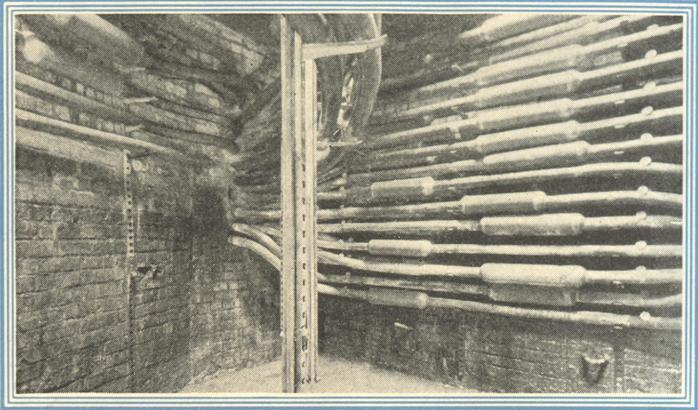

Cables in brick vault
Underground Telephone Cables ca. 1920. Source: A Golden anniversary, 1878-1928 : the story of fifty years of the Bell Telephone in Chicago

Long distance petrochemical pipelines:

About 10 miles of liquid and 60 miles of gas transmission pipelines.  These were mostly built after WWII as natural gas from Texas replaced the manufactured, or water gas previously used.

District heating:

Chicago does not have a district heating system like New York with steam tunnels under the central area. Outlying institutions like universities, hospitals and public housing projects do have district heating—and like New York you can observe steam escaping from the ground.

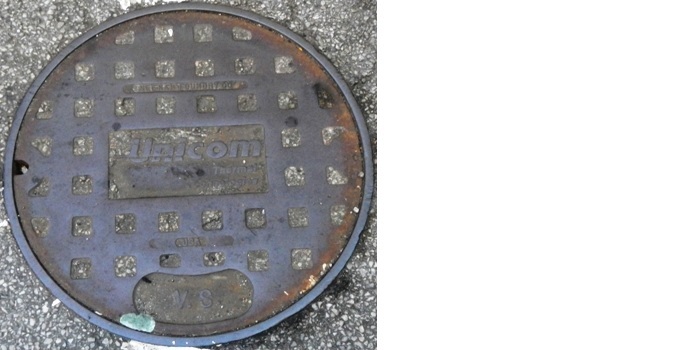

Unicom manhole cover
Unicom, now named Thermal Chicago, operates a district cooling system in downtown Chicago, Photo: Municipal Reference_Guy

District cooling:

Several miles of chilled water piping in the Loop.
